How to Export a Link Map
When migrating pages from Confluence to SharePoint WikiTraccs makes sure to transform links as well.
Links between Confluence pages will become links between SharePoint pages.
When you change Confluence links in external systems to SharePoint links it might be handy to have a link mapping file that - for each old Confluence page link - shows the new SharePoint page link.
This post shows how you can generate such a link mapping file using a PowerShell script.
Note about Scripting
PowerShell scripting is out of scope for WikiTraccs, but at the same time a part of most migration projects. Scripts of any sort can be used to automate tasks.
Feel free to take the library script that is presented in this post and adapt it to your needs. Please understand that I cannot support custom script development and that you’ll need somebody who can run, modify, and extend PowerShell scripts.
Outline
You’ll use a PowerShell script to create the link mapping file. A sample PowerShell script is available in the library.
Running the PowerShell script requires PowerShell 7 to be installed. Furthermore, the PnP.PowerShell module must be installed.
The PowerShell script connects to SharePoint Online and needs an Entra ID Application Registration Client ID for that. You already have such a client ID if you are migrating pages with WikiTraccs. You can use the same client ID that you enter in the blue WikiTraccs window.
Running the Library PowerShell Script to Create The Link Mapping
In a minute, you’ll run a script that processes the metadata of all migrated pages in a SharePoint site collection and calculates the original Confluence links from this metadata.

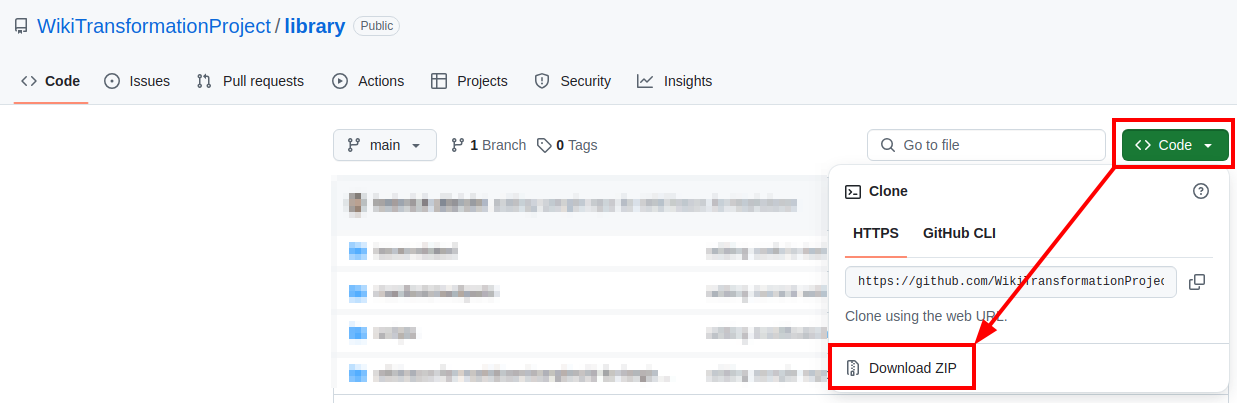

Download the Wiki Transformation Project libray as zip file:
Unzip the file you downloaded. (Note: You could also use Git to clone the repository.)
Open scripts/post-migration/create-link-mapping/CreateLinkMapping.ps1 and adjust the parameters at the top of the script, mainly the client ID and the site collection URL.
Note
I recommend using Visual Studio Code and the PowerShell extension to run PowerShell scripts. This allows for easy configuration, debugging, and modification.Run the PowerShell script.
A new browser tab will open, prompting you to authenticate with Microsoft 365. This is required for the PowerShell script to read page metadata from the Site Pages library.
After authenticating the script should show console output for each page it processes, which could look like on the following image:
The link mapping result is written to a text file called linkmapping.csv which is stored to the current directory.
The content looks like this:
"SharePointPageLink","PageTitleLink","PageTitleLinkAlt","PageIdLink","PageTinyLink"
"/sites/migtarget1/SitePages/TM-Page-S1---Code-Snippet-106070257.aspx","http://localhost:8090/wiki/display/TM/Page+S1+-+Code+Snippet","http://localhost:8090/wiki/pages/viewpage.action?spaceKey=TM&title=Page S1 - Code Snippet","http://localhost:8090/wiki/pages/viewpage.action?pageId=106070257","http://localhost:8090/wiki/x/8YBSBg"
"/sites/migtarget1/SitePages/TM-Page-S6---Table-Cell-Colors-110464825.aspx","http://localhost:8090/wiki/display/TM/Page+S6+-+Table+Cell+Colors","http://localhost:8090/wiki/pages/viewpage.action?spaceKey=TM&title=Page S6 - Table Cell Colors","http://localhost:8090/wiki/pages/viewpage.action?pageId=110464825","http://localhost:8090/wiki/x/OY_VBg"
"/sites/migtarget1/SitePages/TM-Page-S2---Page-Tree-183861249.aspx","http://localhost:8090/wiki/display/TM/Page+S2+-+Page+Tree","http://localhost:8090/wiki/pages/viewpage.action?spaceKey=TM&title=Page S2 - Page Tree","http://localhost:8090/wiki/pages/viewpage.action?pageId=183861249","http://localhost:8090/wiki/x/AYD1Cg"

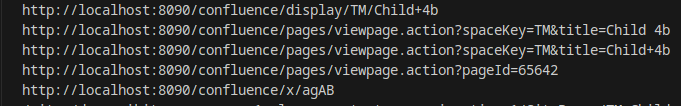

Using Confluence page title, page ID, and tiny link (all migrated by WikiTraccs) the script calculated possible Confluence links, as those link types are known and follow a common scheme.
The script creates the most common Confluence (on-prem) link types: title link, pageId link, and tiny link.
Note
Confluence Cloud introduced new link types, those are not yet covered. Feel free to share the extended script if you add those.The script connects to a single site collection at a time. Reconfigure and run this for every site collection you need the link map for. Or extend the script to take care of that and merge the mapping files.
Wrap
In this blog post we looked at how we can use migrated page metadata and a PowerShell script to create a mapping file that maps Confluence page links to the new SharePoint page links.
This can be helpful, for example, when searching and translating Confluence links in third-party systems.
